Instructions

This page is your one stop to tell you everything you need to install, and maintain your MiniMax.

Come back here any time if you need to reference the installation and regeneration of your unit.

Visual Guide

If you are more of a hands-on individual, scroll down for installation videos, and step-by-step instructions.

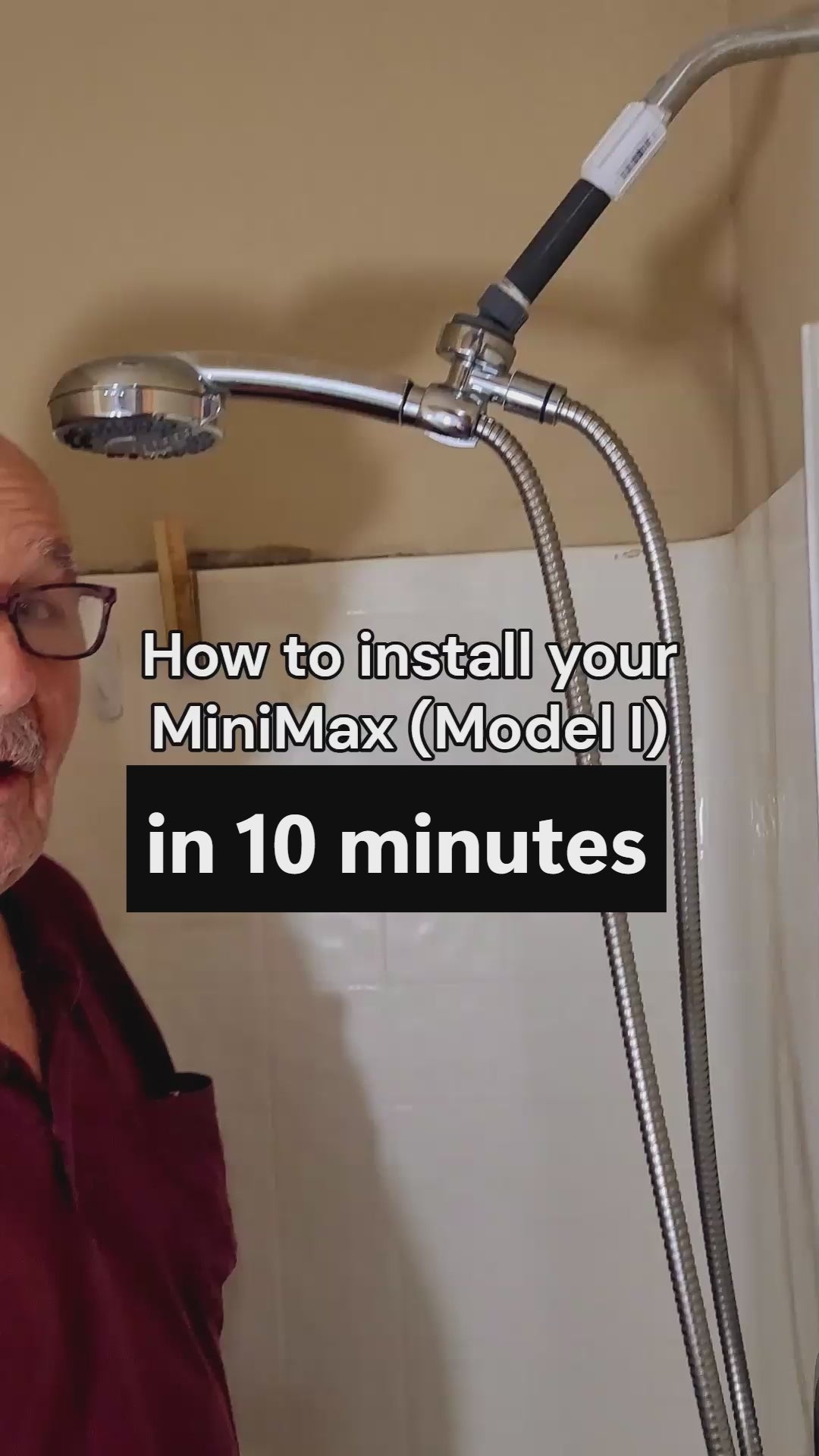

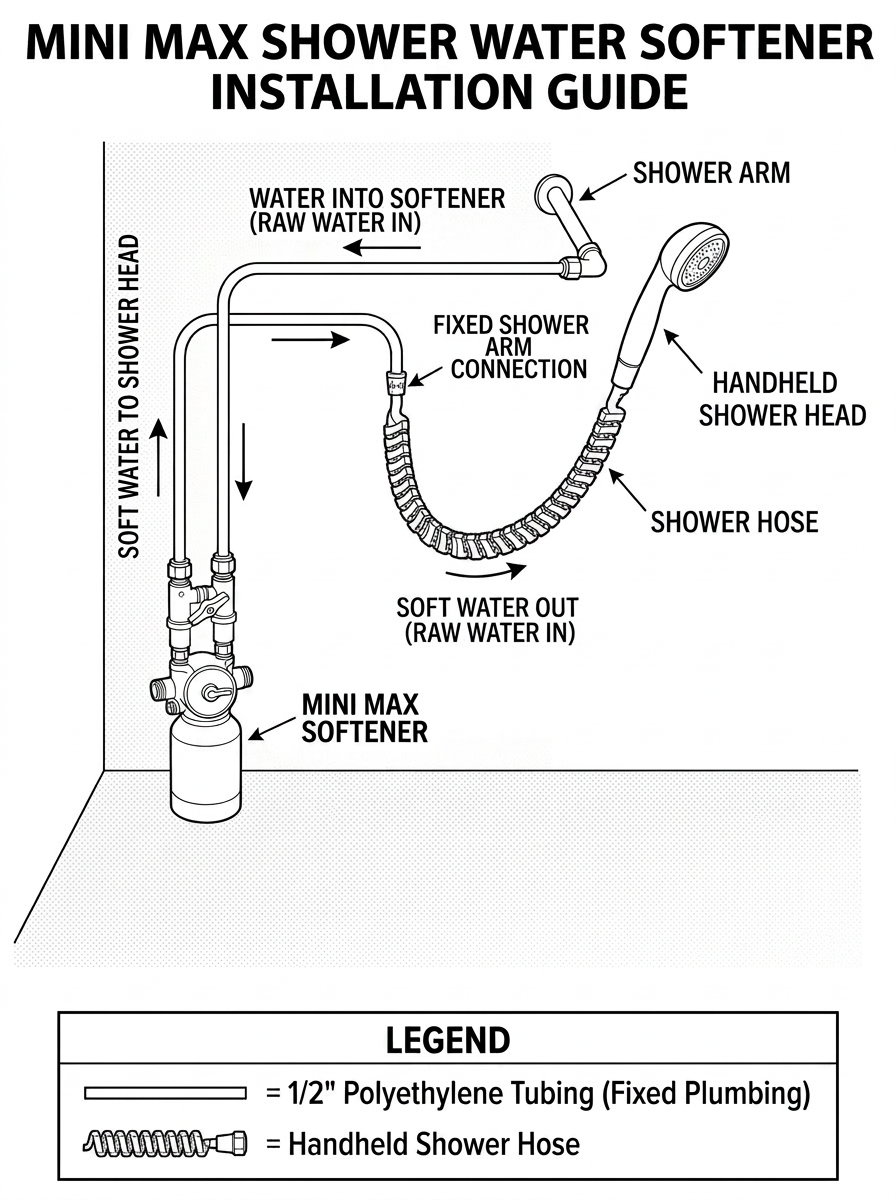

Model I (inside shower) installation

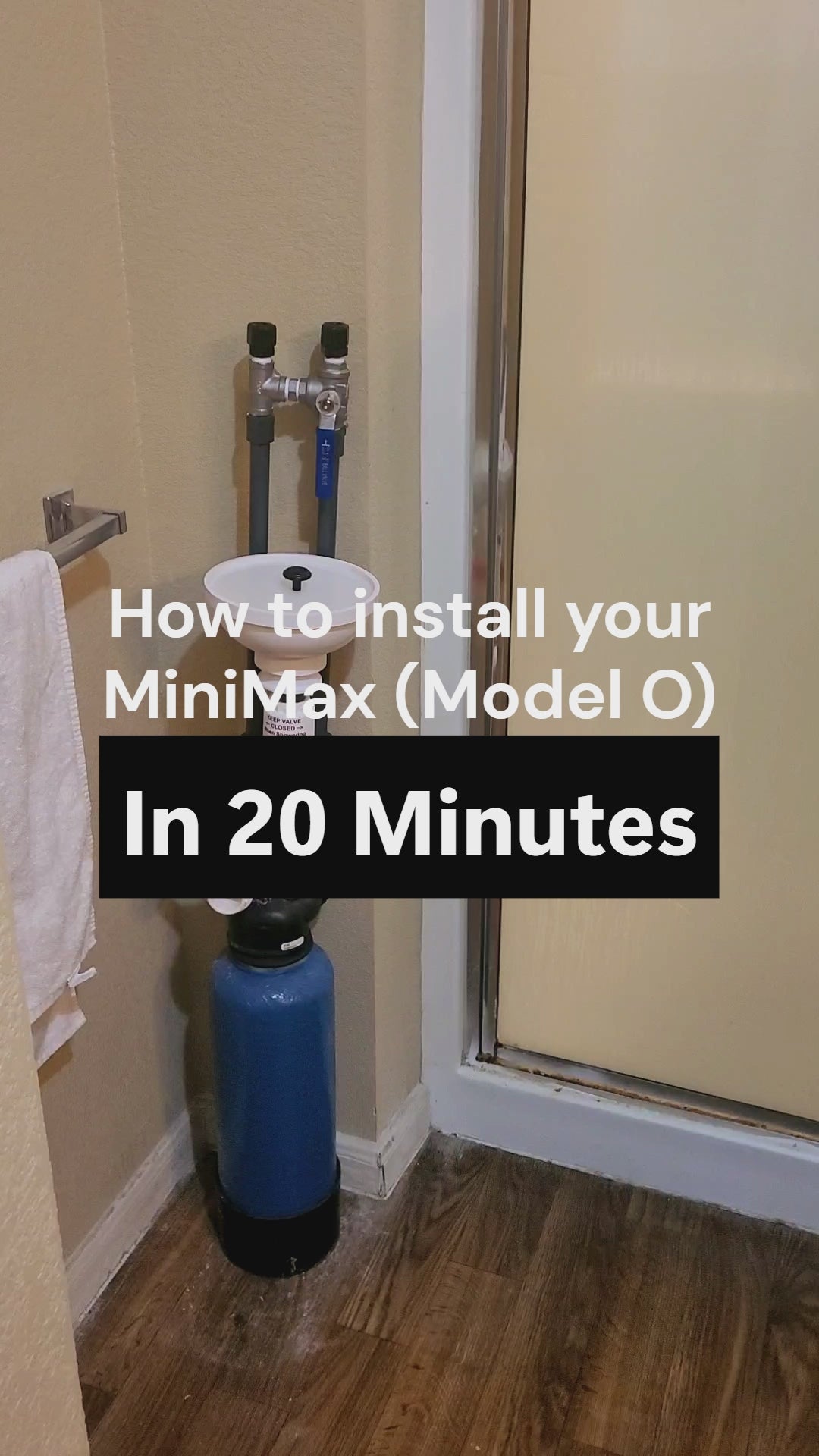

Model O (outside shower) installation

Making the brine solution

Refreshing the resin in the water softener

Also known as regeneration.

For this, you will use 28oz box of table salt, dissolve the salt in 1-gallon of warm tap-water to create a brine solution.

Here in Austin Texas where the water is 7gpg (grains-per-gallon),
we would refresh the water after approximately 1,000 gallons of water useage.
That would be well over 50 ten-minute showers before a refesh is needed.

(after you have completed this step, proceed below)

Step-by-step instructions are below the video

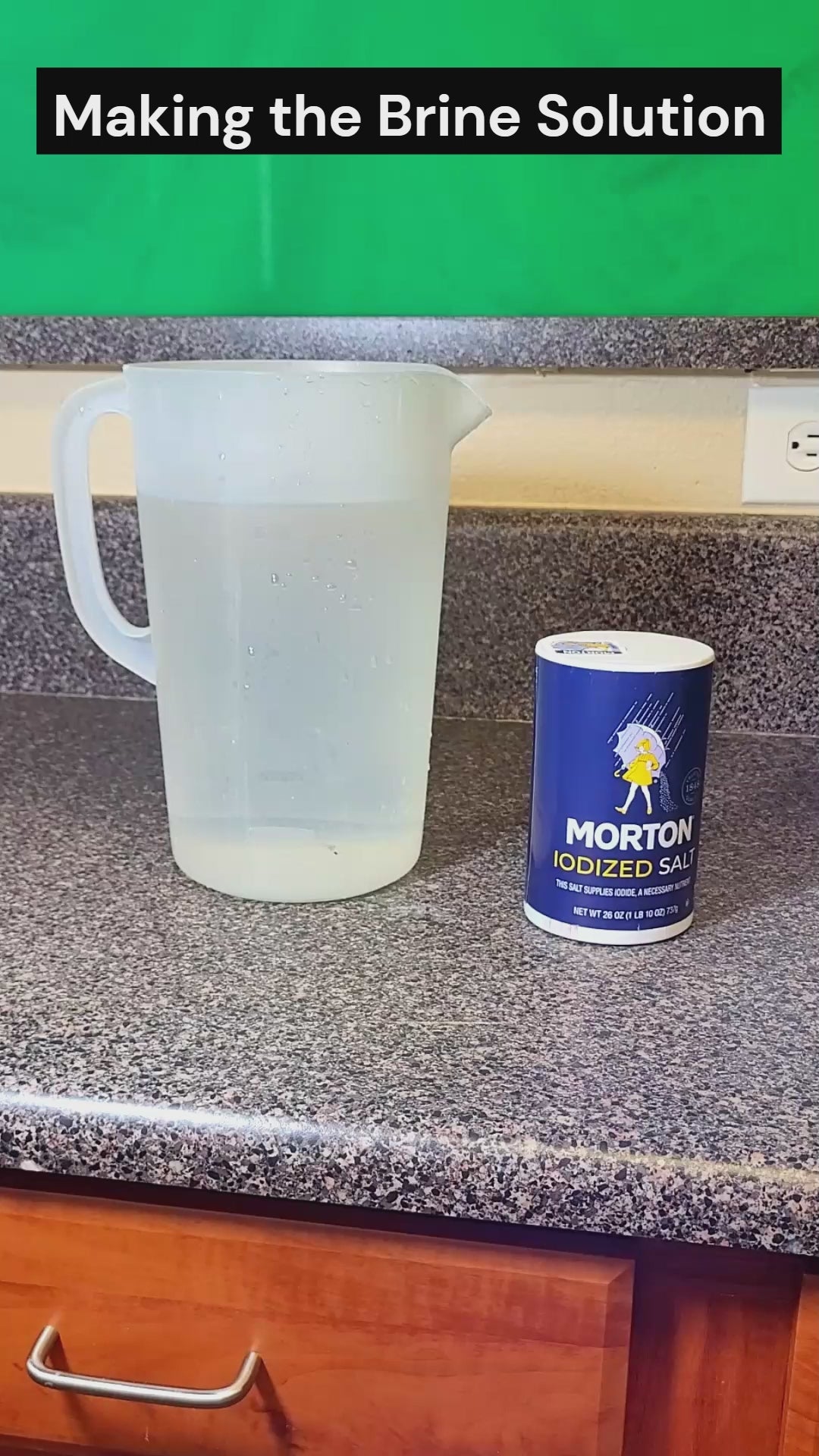

Making the Brine Solution

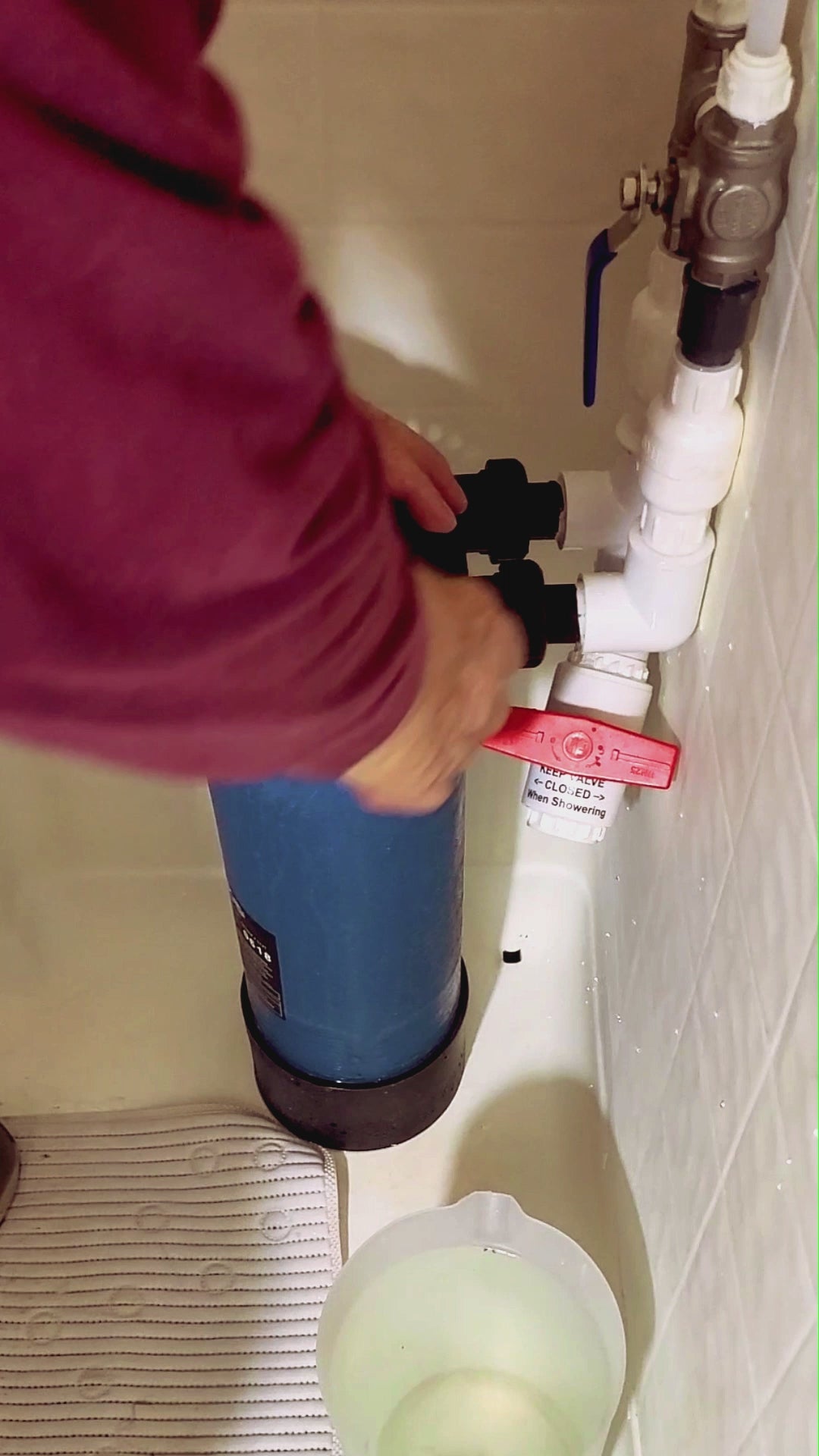

How to Regenerate your MiniMax (Model I)

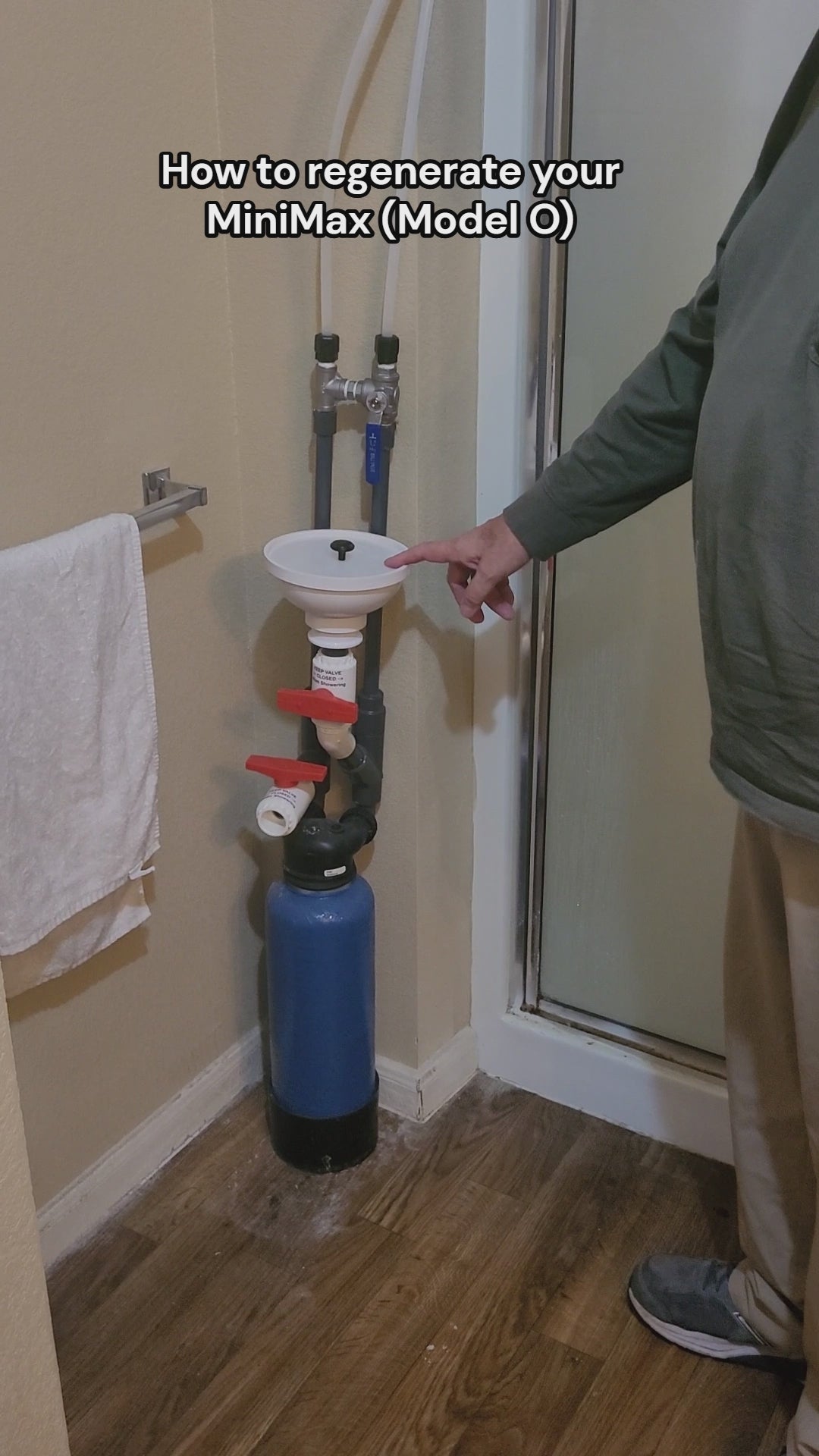

How to Regenerate your MiniMax (Model O)

Step-by-step Instructions

1

Open the Softener Tank

You need access to the tank before beginning regeneration.

  • Remove the top cover of the water softener tank
  • Set the cover aside somewhere clean (or in your pocket)

2

Prepare the Regeneration Tube

The tube must be ready before inserting it into the tank.

  • Take the regeneration tube
  • Remove the protective cap from the threads
  • Ensure threads are clean and undamaged

3

Insert the Regeneration Tube

This allows fresh water to enter and push out hardness.

  • Gently screw the tube into the tank opening
  • Tighten hand‑tight only — do not use tools

4

Open the Drain Line

Opening the drain lets old hard water exit during regeneration.

  • Locate the drain valve
  • Open it fully so hard water can flow out
  • Confirm water is flowing through the softener and exiting the drain

5

Monitor the Flow

You’ll stop draining once hardness stops flushing out.

  • Watch the drain output
  • When water stops dripping or slows significantly, close the drain valve

6

Seal the Tank Again

Closing the system allows the brine solution to settle.

  • Put the top cover back on the tank
  • Tighten hand‑tight only

7

Let the Tank Sit

A short rest allows the brine to finish dissolving hardness.

  • Allow the tank to sit for a couple of minutes before running water

8

Flush the System

Running water clears out remaining hardness and salt.

  • Turn the water back on
  • Run water through the softener until it flows clear
  • This restores soft water for roughly 30 showers

9

Confirm Drain Valve Is Closed

Leaving the drain open will cause pressure loss.

  • Ensure the drain valve is OFF before using household water
  • If left open, water will escape and shower pressure will drop
